Cairo University and Analog Devices Cooperation in the Field of Digital Signal Processing and Embedded Systems

Since Fall 2002, the department of Electronics and Communications Engineering/Cairo University has been in cooperation with Analog Devices INC. Analog Device donated five EZ-LITE 21061 DSP kits, ten Blackfin BF531 kits, and Visual DSP software. The following is a summary of the projects done using these kits and the Visual DSP software. For more information, contact Dr. Khaled Fouad Elsayed (Khaled AT IEEE.ORG).


B.Sc. Senior Projects

Project Title: Design and Implementation of IPTV System
Project Adviser: Assoc. Prof. Khaled Elsayed
Number of Students: 7
Academic Year: 2005-2006

IPTV is a method of distributing television content over IP that enables a more customized and interactive user experience. IPTV, essentially, has two components:

  1. Part 1: Internet Protocol (IP): specifies the format of packets and the addressing scheme. It allows you to address a package of information and drop it in the system, but there’s no direct link between sender and the recipient.
  2. Part 2: Television (TV): We all know TV, but here we are referring to the services that are offered for the TV, like linear and on demand programming.
Add the two components together (IP+TV) and you have IPTV . The project implements an IPTV system as shown in the figure.

A summary of the project is available here.



IPTVsys





Project Title: MPEG2 Player on embedded Linux system
Project Adviser: Assoc. Prof. Khaled Elsayed
Number of Students: 1
Academic Year: 2005-2006

The project objective is implementing IPTV viewing device on embedded Linux system. The output of the project was an MPEG2 Player on embedded Linux system based on Blackfin architecture on a ADSP-BF533 EZKIT LITE. The following figure shows the mpeg2 player block diagram.

A summary of the project is available here.

MPEG2 System


Project Title: Implementation of OFDM System for Power Line Communication Using Analog Devices EZ-LITE 21061Kit
Project Adviser: Dr. Mohamed Nafie
Number of Students: 4
Academic Year: 2004-2005

This project discuss the implementation of OFDM system over power lines as a communication technique capable of removing the effects of multi path fading


The main idea of the project is to build two separate power line systems, one utilizing the ordinary FSK modulator with a simple coupling equipment,  the second is OFDM system over power  lines and compare the performance for both of the two cases.

A summary of the project is available here.

ofdm plc



Project Title: Software Defined Radio
Project Adviser: Prof. Magdi Fikri
Number of Students: 7
Academic Year: 2003-2004

Software Radio Transceiver, in its widest meaning, defines a general TX/RX architecture that can be completely reconfigured, directly operating on an RF digitized information stream. Analog processing is limited at the RF front-end, where a pass-band image-rejection filter selects a large spectrum portion containing the desired services.

After a LNA, an ADC converts the signal with the precision required by the system specifications. The digital RF stream is then fed to the Digital processors (RSP, DSP) that:

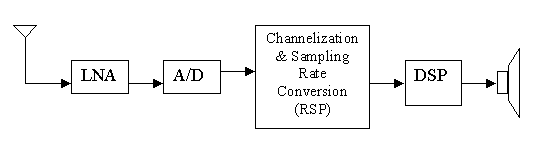

SDR Architecture

General Block Diagram of SDR

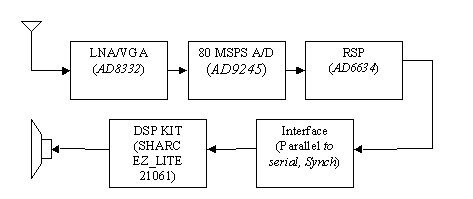

In our project we designed and constructed an SDR for analog FM reception using three evaluation boards and a DSP kit from Analog Devices as illustrated in the following diagram. The A/D sub-samples the RF signal in the third Nyquist zone (88 MHz to 108 MHz), The RSP down-converts the selected channel to zero-IF. The software on the DSP kit acquires the complex low-pass signal through its serial port and DMA channel, demodulates it and outputs the resulting audio to the speaker.

block diagram

Block Diagram of the constructed SDR



Project Title: OFDM System Implementation Using the Analog Devices SHARC EZ-LITE 21061 DSP KIT
Project Adviser: Assoc. Prof. Heba Mourad
Number of Students: 4
Academic Year:  2003-2004

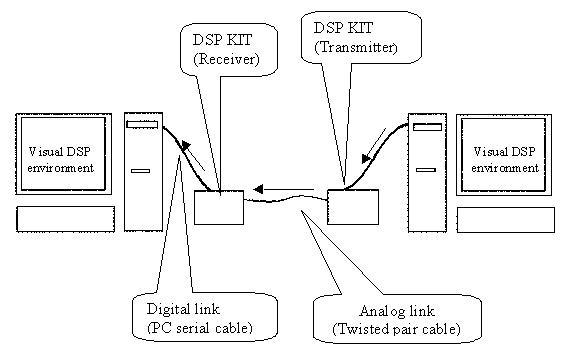

The project target is transmitting a digital data stream between two DSP KITS using OFDM communication system. Each kit will be connected to a PC via serial port, one of them will work as a transmitter and the other will work as a receiver. After completing the system design on the Visual DSP development environment on a PC, the program code is downloaded on the kit via serial port. In the running mode the kit that acts as a transmitter will take a digital data from its pc through serial port then it generates an OFDM packet and transmits this packet in analog form via sound port. The kit that acts as a receiver will receive the transmitted packet from the sound port then does the reverse action of the transmitter, finally it sends the digital information received to the PC via serial port. The following figure provides a block diagram of the actual system.


 OFDM Architecture

System Architecture




Project Title: OFCDM System Implementation Using the Analog Devices EZ-LITE 21061 DSP KIT
Project Adviser: Assoc. Prof. Khaled Elsayed
Number of Students: 3
Academic Year: 2003-2004


Due to the current trend of personal wireless communication, there are growing needs for both higher bit rate data transmission and more efficient multiple access techniques.

To fulfill these demands these, a new scheme named orthogonal frequency and code division multiplexing (OFCDM ) that combines orthogonal frequency  division multiplexing (OFDM) and variable spreading factor code division multiple access (VSF-CDMA) was proposed. This scheme is capable of providing but rates above 100 Mbps using an approximate 50-100 MHZ bandwidth. So, it can be a solution for the future increase in the amount of data traffic expected in 4G systems.

This project is an attempt to realize an OFCDM transceiver using the Analog Devices EZ-LITE 21061 DSP KIT. The design was verified on MATLAB and then each block was coded and tested on the EZ-LITE 21061 DSP KIT. The following figures illustrate the transmitter and receiver blocks. The project only implemented a constant spreading factor for CDMA.

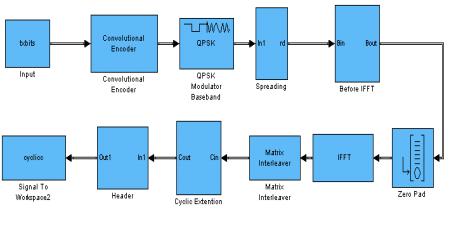

transmitter
Transmitter Block Diagram




receiver

Receiver Block Diagram
